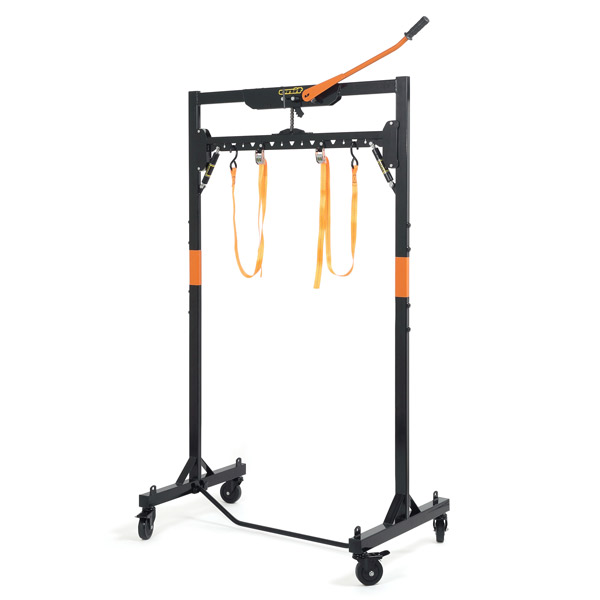

C1410 MOVABLE GATE LIFTER

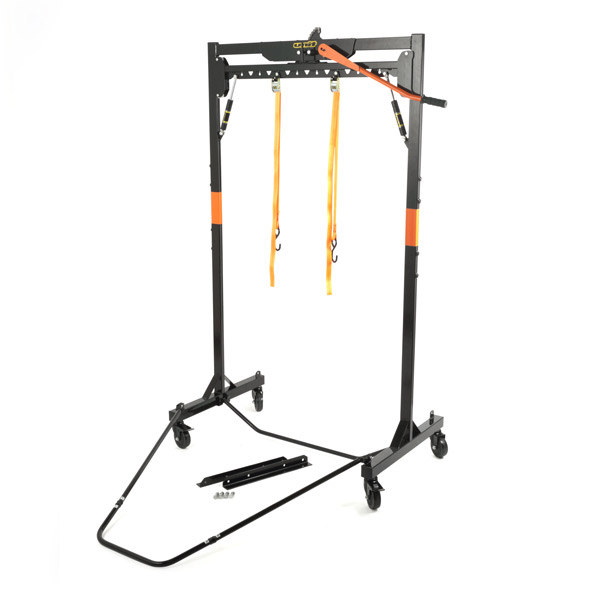

C1412 MOVABLE GATE LIFTER w/Pull Handle

SPECIFICATIONS:

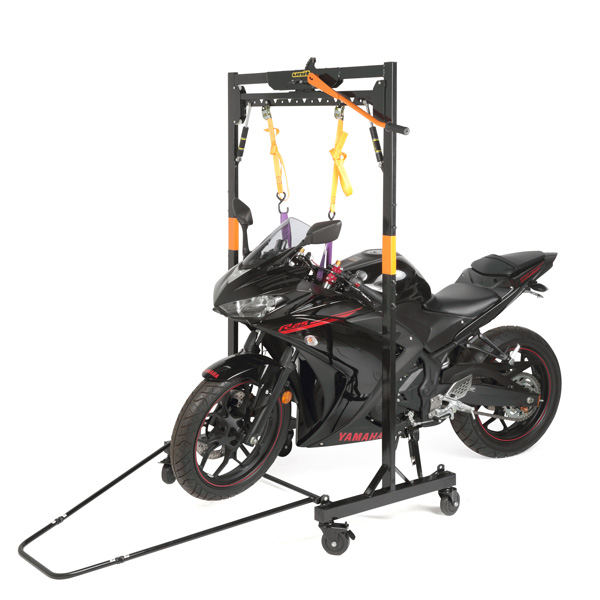

- Able to move while lifting up the bike to the disassembly and
maintenance of the wheel and the suspension.
- Comes with frame connection plate and carry handle.(C1412)
SPEC:
♦ Lift bar height range: 1550 mm (Lowest) 1700 mm (Highest)
♦ Inside frame width: 980 mm
♦ Lift height: Approx 100 mm
♦ Liftable weight: 200 kg

C1410 MOVABLE GATE LIFTER		C1412 MOVABLE GATE LIFTER w/Pull Handle
Size(mm)	W 1082 x D 660 x H 1840	Size(mm)	W 1082 x D 660 x H 1840
Weight	28.5 kg	Weight	30.5 kg

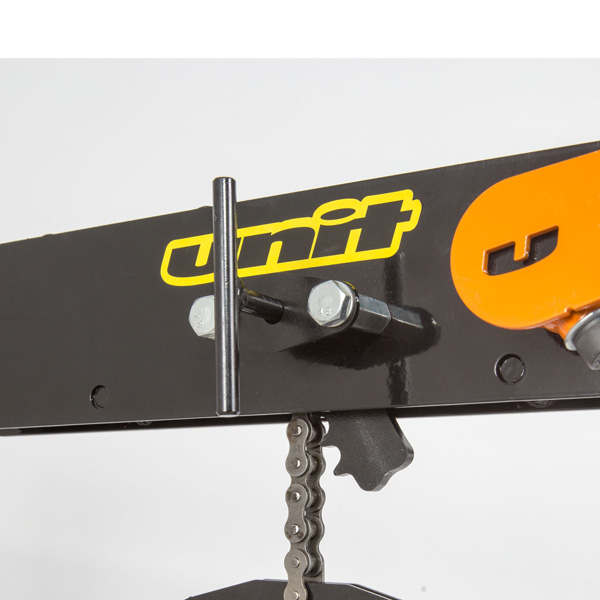

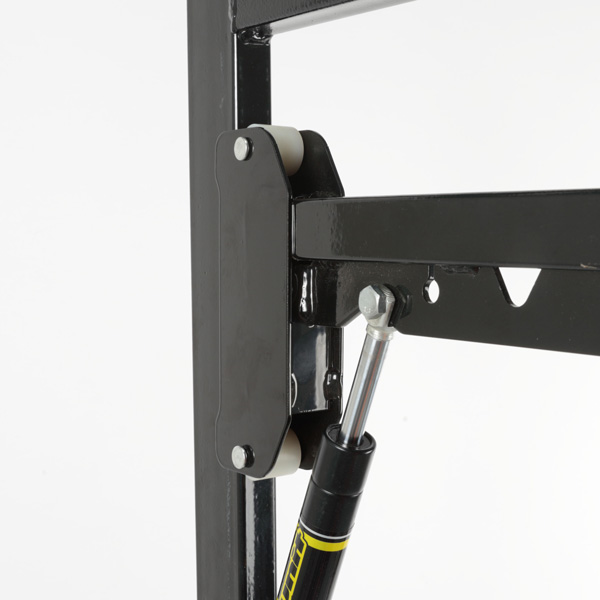

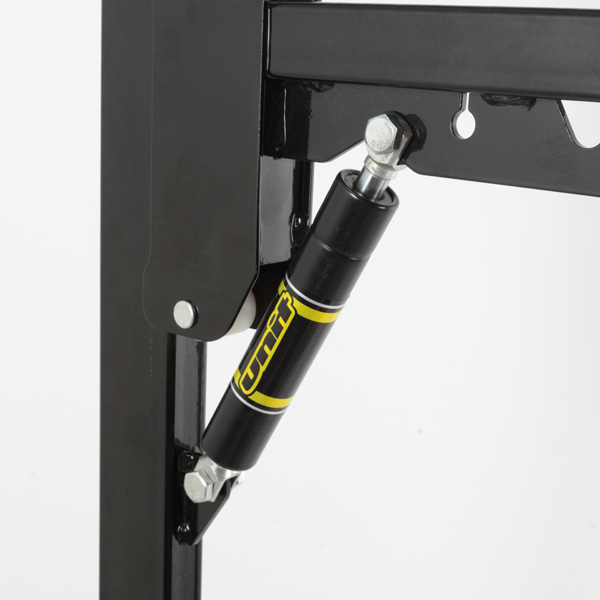

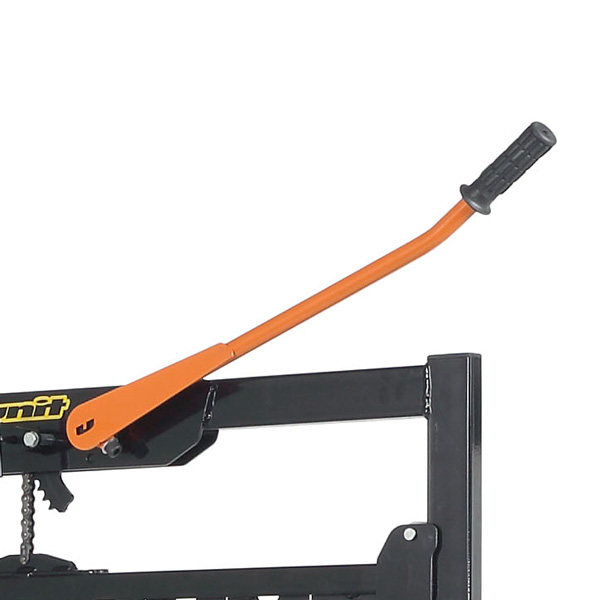

LEVER HANDLE	STOPPER	ROLLER	DAMPER
Pull Down Force Power through sprocket and chain makes lifting the bike easy.	Automatically locks when lifting. Pull down the lever handle and pull the stopper to release the lock and lower the bike.	4 rollers prevent tilting of the lift bar and keep it horizontal when lifting the bike.	Two dampers reduce the impact when lowering.

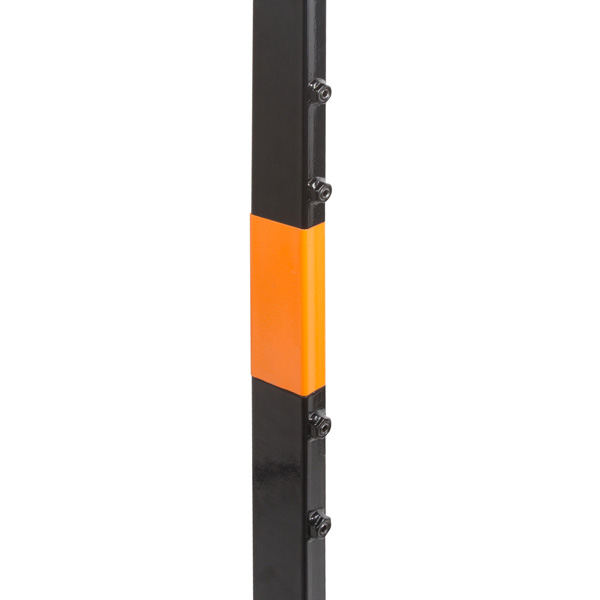

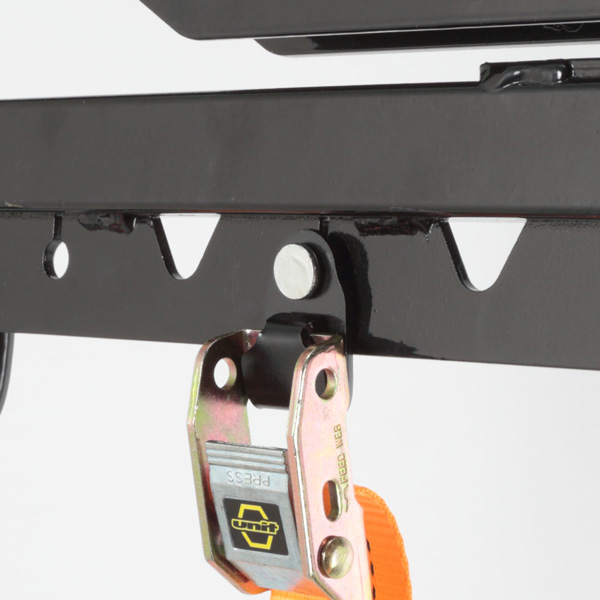

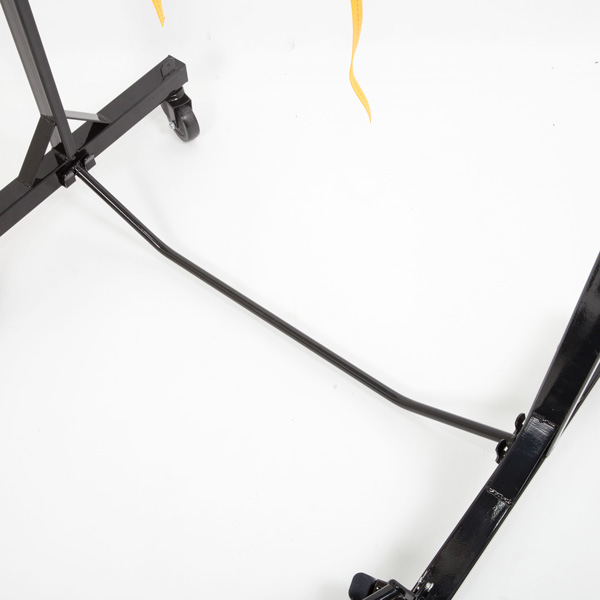

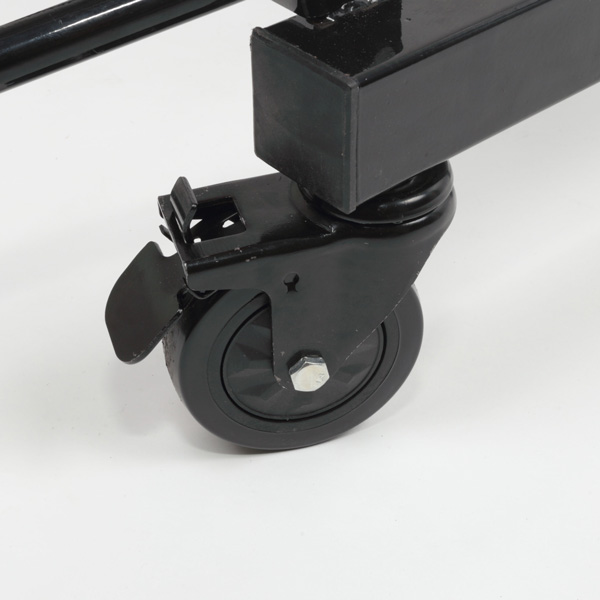

TIE-DOWN BELT with SPECIAL BRACKET	FRAME SPACER	100 mm ROTARY CASTER	REMOVABLE STABILIZER PIPE
Mounting position can be adjusted. Set on lift bar with pin and clip.	Height is adjustable with two different length frame .	Smooth mobility with large diameter wheel. With brake x2, Without brake x2.	By inserting the stabilizer pipe in the hook ensures frame rigidity for mounting and moving.

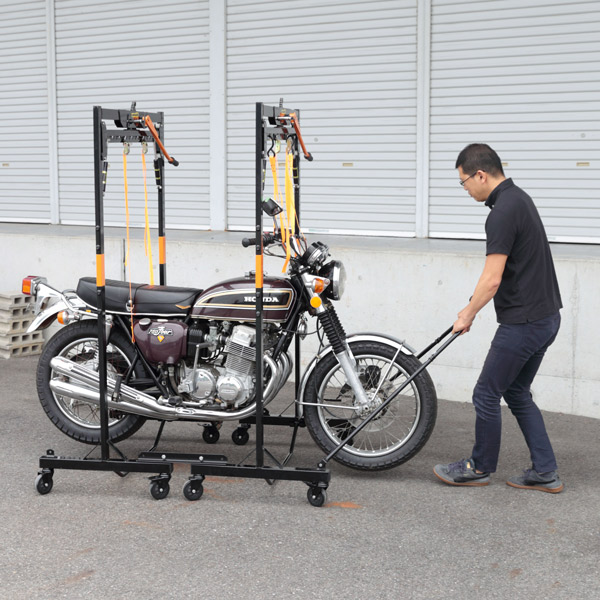

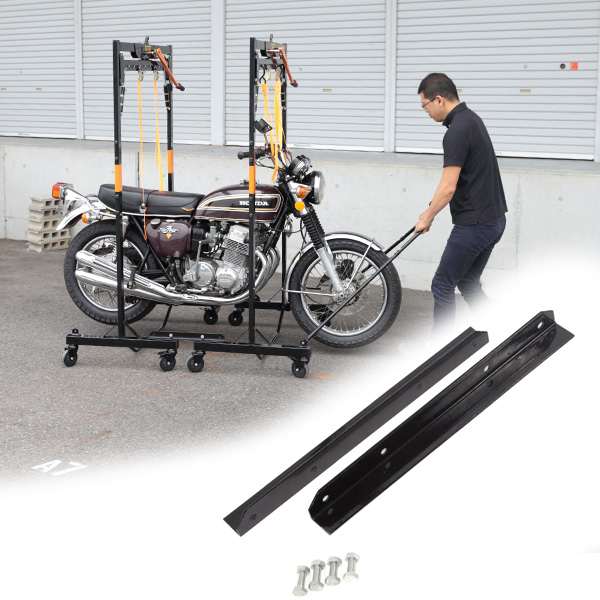

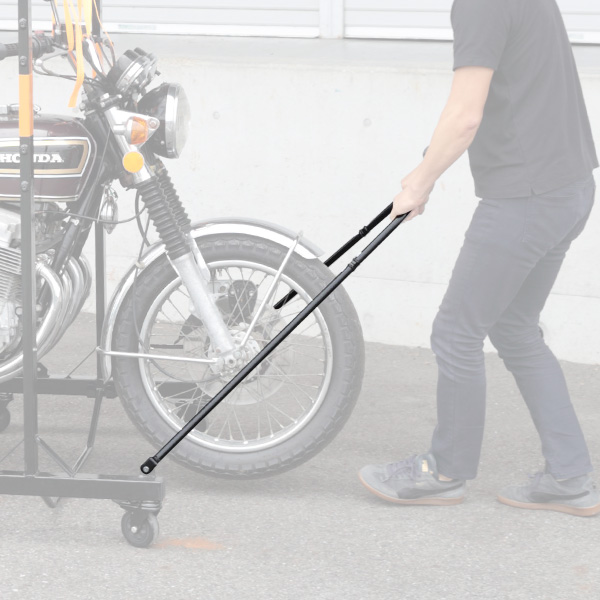

FRAME CONNECTION PLATE (INCLUDE C1412)	CARRY HANDLE (INCLUDE C1412)
Connect 2 Lifters in front and back and lift up the whole bike and it makes movable.	Pull, push, and turn when moving.
