BRANK STAINLESS SPORK
SPECIFICATIONS:

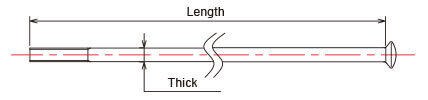

- Base spokes for bending to the required spoke angle using spoke bender.
- To accommodate various models line-up length in 2 mm increments.
- Made of stainless steel, and is resistant to rust and offers a fine quality
texture not found in plating.
| *Please put spoke outer diameter part number | |||||
| Size | Part # | Spoke outer diameter ( mm ) | |||
| 2.3 (3) | 3.2 (4) | 3.5 (5) | 4.0 (6) | ||
| 80 | DC432-*080 | 3 | - | - | - |
| 82 | DC432-*082 | 3 | - | - | - |
| 84 | DC432-*084 | 3 | - | - | - |
| 86 | DC432-*086 | 3 | - | - | - |
| 88 | DC432-*088 | 3 | - | - | - |
| 90 | DC432-*090 | 3 | - | - | - |
| 92 | DC432-*092 | 3 | - | - | - |
| 94 | DC432-*094 | 3 | - | - | - |
| 96 | DC432-*096 | 3 | - | - | - |
| 98 | DC432-*098 | 3 | - | - | - |
| 100 | DC432-*100 | 3 | 4 | 5 | 6 |
| 102 | DC432-*102 | 3 | 4 | 5 | 6 |
| 104 | DC432-*104 | 3 | 4 | 5 | 6 |
| 106 | DC432-*106 | 3 | 4 | 5 | 6 |
| 108 | DC432-*108 | 3 | 4 | 5 | 6 |
| 110 | DC432-*110 | 3 | 4 | 5 | 6 |
| 112 | DC432-*112 | 3 | 4 | 5 | 6 |
| 114 | DC432-*114 | 3 | 4 | 5 | 6 |
| 116 | DC432-*116 | 3 | 4 | 5 | 6 |
| 118 | DC432-*118 | 3 | 4 | 5 | 6 |
| 120 | DC432-*120 | 3 | 4 | 5 | 6 |
| 122 | DC432-*122 | 3 | 4 | 5 | 6 |
| 124 | DC432-*124 | 3 | 4 | 5 | 6 |
| 126 | DC432-*126 | 3 | 4 | 5 | 6 |
| 128 | DC432-*128 | 3 | 4 | 5 | 6 |
| 130 | DC432-*130 | 3 | 4 | 5 | 6 |
| 132 | DC432-*132 | 3 | 4 | 5 | 6 |
| 134 | DC432-*134 | 3 | 4 | 5 | 6 |
| 136 | DC432-*136 | 3 | 4 | 5 | 6 |
| 138 | DC432-*138 | 3 | 4 | 5 | 6 |
| 140 | DC432-*140 | 3 | 4 | 5 | 6 |
| 142 | DC432-*142 | 3 | 4 | 5 | 6 |
| 144 | DC432-*144 | 3 | 4 | 5 | 6 |
| 146 | DC432-*146 | 3 | 4 | 5 | 6 |
| 148 | DC432-*148 | 3 | 4 | 5 | 6 |
| 150 | DC432-*150 | 3 | 4 | 5 | 6 |
| 152 | DC432-*152 | 3 | 4 | 5 | 6 |
| 154 | DC432-*154 | 3 | 4 | 5 | 6 |
| 156 | DC432-*156 | 3 | 4 | 5 | 6 |
| 158 | DC432-*158 | 3 | 4 | 5 | 6 |
| 160 | DC432-*160 | 3 | 4 | 5 | 6 |
| 162 | DC432-*162 | 3 | 4 | 5 | 6 |
| 164 | DC432-*164 | 3 | 4 | 5 | 6 |
| 166 | DC432-*166 | 3 | 4 | 5 | 6 |
| 168 | DC432-*168 | 3 | 4 | 5 | 6 |
| 170 | DC432-*170 | 3 | 4 | 5 | 6 |
| 172 | DC432-*172 | 3 | 4 | 5 | 6 |
| 174 | DC432-*174 | 3 | 4 | 5 | 6 |
| 176 | DC432-*176 | 3 | 4 | 5 | 6 |
| 178 | DC432-*178 | 3 | 4 | 5 | 6 |
| 180 | DC432-*180 | 3 | 4 | 5 | 6 |
| 182 | DC432-*182 | 3 | 4 | 5 | 6 |
| 184 | DC432-*184 | 3 | 4 | 5 | 6 |
| 186 | DC432-*186 | 3 | 4 | 5 | 6 |
| 188 | DC432-*188 | 3 | 4 | 5 | 6 |
| 190 | DC432-*190 | 3 | 4 | 5 | 6 |
| 192 | DC432-*192 | 3 | 4 | 5 | 6 |
| 194 | DC432-*194 | 3 | 4 | 5 | 6 |
| 196 | DC432-*196 | 3 | 4 | 5 | 6 |
| 198 | DC432-*198 | 3 | 4 | 5 | 6 |
| 200 | DC432-*200 | 3 | 4 | 5 | 6 |
| 202 | DC432-*202 | 3 | 4 | 5 | 6 |
| 204 | DC432-*204 | 3 | 4 | 5 | 6 |
| 206 | DC432-*206 | 3 | 4 | 5 | 6 |
| 208 | DC432-*208 | 3 | 4 | 5 | 6 |
| 210 | DC432-*210 | 3 | 4 | 5 | 6 |
| 212 | DC432-*212 | 3 | 4 | 5 | 6 |
| 214 | DC432-*214 | 3 | 4 | 5 | 6 |
| 216 | DC432-*216 | 3 | 4 | 5 | 6 |
| 218 | DC432-*218 | 3 | 4 | 5 | 6 |
| 220 | DC432-*220 | 3 | 4 | 5 | 6 |
| 222 | DC432-*222 | 3 | 4 | 5 | 6 |
| 224 | DC432-*224 | 3 | 4 | 5 | 6 |
| 226 | DC432-*226 | 3 | 4 | 5 | 6 |
| 228 | DC432-*228 | 3 | 4 | 5 | 6 |
| 230 | DC432-*230 | 3 | 4 | 5 | 6 |
| 232 | DC432-*232 | 3 | 4 | 5 | 6 |
| 234 | DC432-*234 | 3 | 4 | 5 | 6 |
| 236 | DC432-*236 | 3 | 4 | 5 | 6 |
| 238 | DC432-*238 | 3 | 4 | 5 | 6 |
| 240 | DC432-*240 | 3 | 4 | 5 | 6 |
| 242 | DC432-*242 | 3 | 4 | 5 | 6 |
| 244 | DC432-*244 | 3 | 4 | 5 | 6 |
| 246 | DC432-*246 | 3 | 4 | 5 | 6 |
| 248 | DC432-*248 | 3 | 4 | 5 | - |
| 250 | DC432-*250 | 3 | 4 | 5 | - |
| 252 | DC432-*252 | - | 4 | 5 | - |
| 254 | DC432-*254 | - | 4 | 5 | - |
| 256 | DC432-*256 | - | 4 | 5 | - |
| 258 | DC432-*258 | - | 4 | 5 | - |
