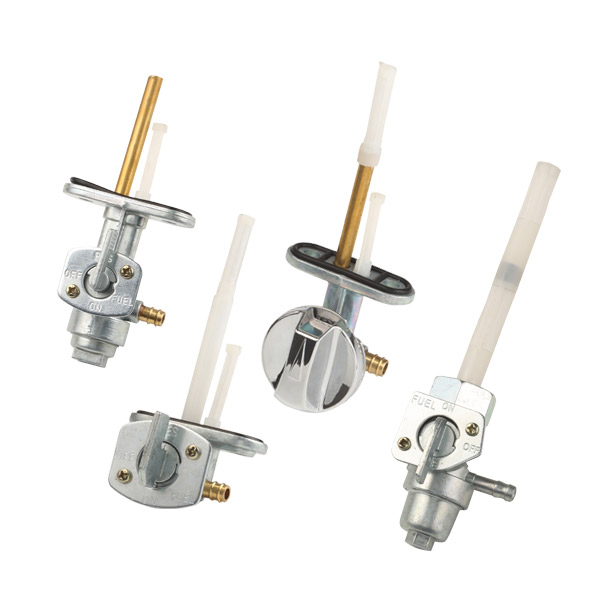

FUEL COCK & FUEL FILTER
SPECIFICATIONS:
- Lever switch : ON / OFF / Reserve

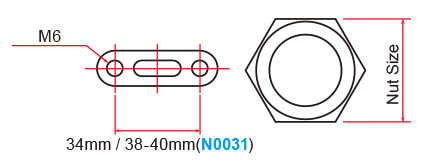

The screw size varies depending on year and model, please confirm
manufacturer's tank.
| FUEL COCK | |||
| Bike | Year | Part number | |
| with-Strainer | w/o-Strainer | ||
| HONDA | |||
| CR125R/250R | 80-07 | UN-N0031 | - |
| CRM250R | 89-96 | - | UN-N0023 |
| CRM250AR | 97-98 | - | UN-N0022 |
| MT125 | 74-76 | - | UN-N0042 |
| MT250 | 74-76 | - | UN-N0042 |
| MTX125R | 83 | - | UN-N0011 |
| MTX200R | 83-88 | - | UN-N0011 |
| SL125 | 71-74 | - | UN-N0042 |
| TLR200 | 83 | UN-N0010 | - |
| TLM200R | 85-87 | - | UN-N0012 |
| TLM220R | 88-93 | - | UN-N0012 |
| XE50 | 76-79 | UN-N0010 | - |
| XE75 | 76-79 | UN-N0010 | - |
| XL125S | 79-81 | UN-N0010 | - |
| XLR250R/BAJA | 89-94 | - | UN-N0023 |
| XR250(MD30)/BAJA | 95-07 | - | UN-N0022 |
| CL125 | - | UN-N0043 | |
| YAMAHA | |||
| DT125 | 78-79 | - | UN-N0651 |
| DT200R | 88-90 | UN-N0641 | - |
| DT200WR | 91-94 | UN-N0401 | UN-N0402 |
| DT250 | 74-76 | UN-N0621 | - |
| DT360 | 74 | UN-N0621 | - |
| GT50 | 72-81 | - | UN-N0602 |
| GT80 | 72-81 | - | UN-N0602 |
| MR50 | 77-78 | - | UN-N0602 |
| SEROW225 | 89-93 | UN-N0661 | - |
| SEROW225W | 93-96 | UN-N0661 | - |
| TY50 | 75-80 | - | UN-N0602 |
| TY80 | 75-78 | - | UN-N0602 |
| TY125 | 75-78 | - | UN-N0611 |
| TY175 | 75-80 | - | UN-N0611 |
| TY250 | 74-77 | - | UN-N0611 |
| TY250R/S | 84-91 | UN-N0641 | - |
| XT500 | 76-81 | UN-N0621 | - |
| KAWASAKI | |||
| KLR250 | 85-90 | UN-N0201 | - |
| KM90 | 76-81 | - | UN-N0241 |
| 125TR | 74-75 | - | UN-N0251 |
| KE125 | 76-79 | - | UN-N0251 |
| SUZUKI | |||
| DR125S | 82-84 | - | UN-N0411 |
| RA125 | 84-88 | - | UN-N0413 |
| RH250 | 84-88 | - | UN-N0413 |
| RMX250S | 96-98 | UN-N0401 | UN-N0402 |
| SX200R | 85-91 | UN-N0411 | - |
| TS50W | 90-97 | - | UN-N0413 |

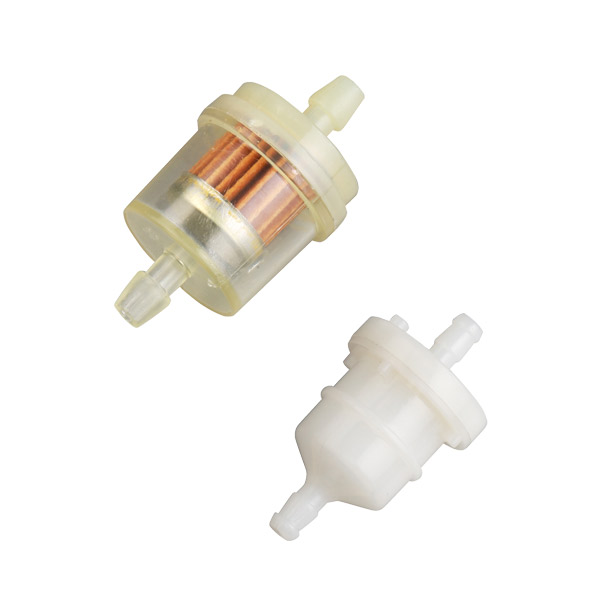

| FUEL FILTER | Image | Part # | Color | Size |
 |

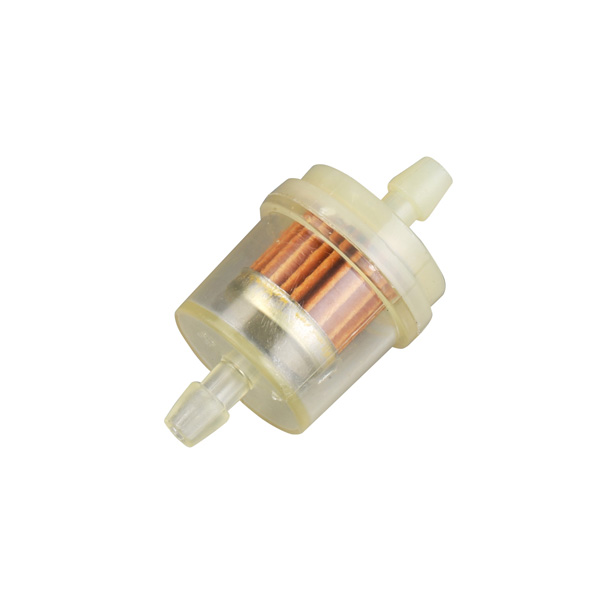

N2110 | Clear Universal | Inner hose size 5-7mm |
 |

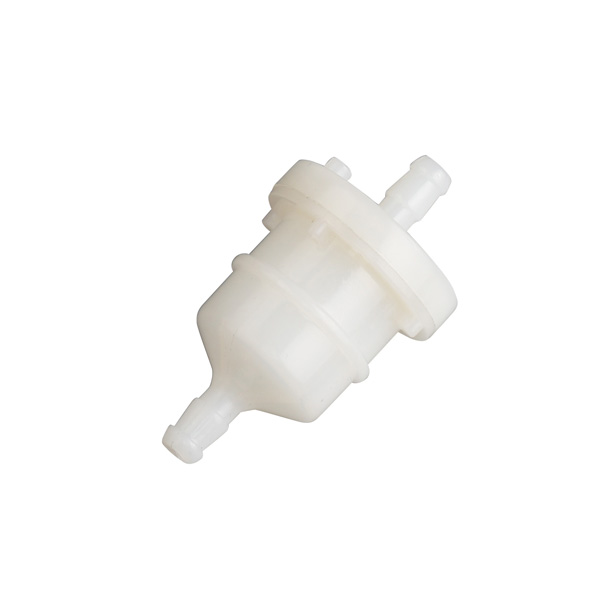

N2112 | White Universal | |
