FORK DUST COVER

SPECIFICATIONS:

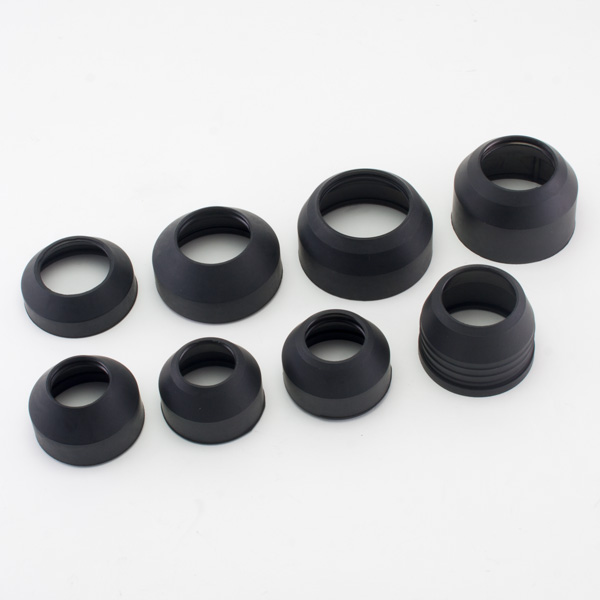

- Dust cover made of synthetic rubber, excellent in wear resistance, better than conventional fork dust cover. Matte black type surface.

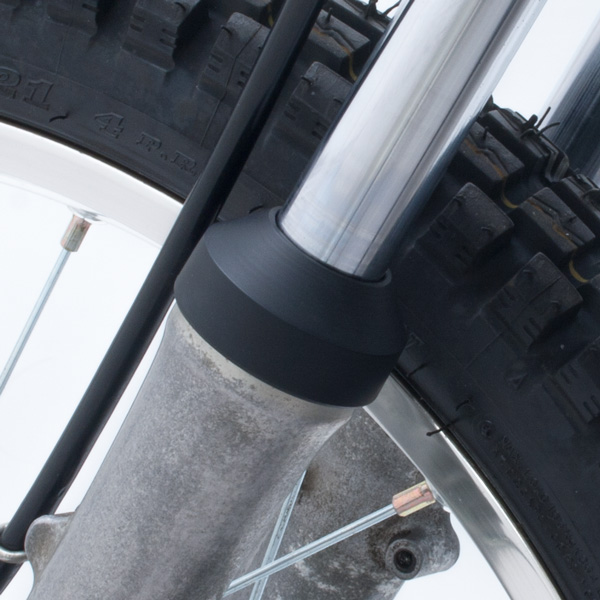

- The best for replacement covering of vintage bikes where stock parts are difficult to find.

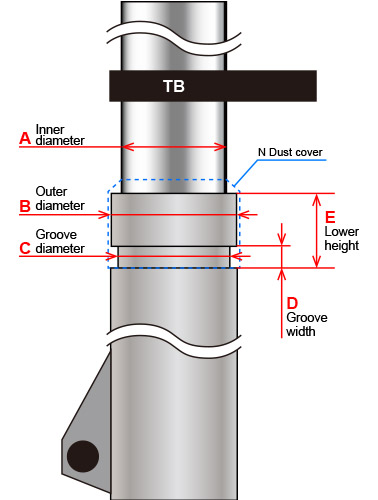

Part #	Size(mm)
	Inner	Outer ±0.5mm
	(A) Diameter	(B) Diameter	(C) Groove diameter	(D) Groove width	(E) Lower height
N3261	26	43	41	5	14.5
N3263	26	38.5	37	2.5	18
N3272	27	46.5	44	7.5	15
N3275	27	46	43	5	15
N3276	27	47	44	7.5	17
N3278	27	42	38	4	24
N3303	30	48	46	5	15
N3305	30	45	42	4	21
N3306	30	48.5	45.5	4.5	21
N3311	31	54	52	5	15
N3312	31	50	48	5	15
N3331	33	54	52	5	15
N3333	33	53	50	4.5	14
N3341	34	55.5	52.5	4.5	21.5
N3345	34	50	47	4.5	21.5
N3347	34	50	48	4.5	10
N3348	34	50	47	4.5	21.5
N3349	34	54	51	4.5	22
N3351	35	56	54	5	15
N3355	35	55	52	4.5	22
N3356	35	54	52	4.5	12
N3357	35	55	52	4	14
N3362	36	56	53	4.5	21.5
N3364	36	56	53	4	14.5
N3431	43	61	59	4.5	15
