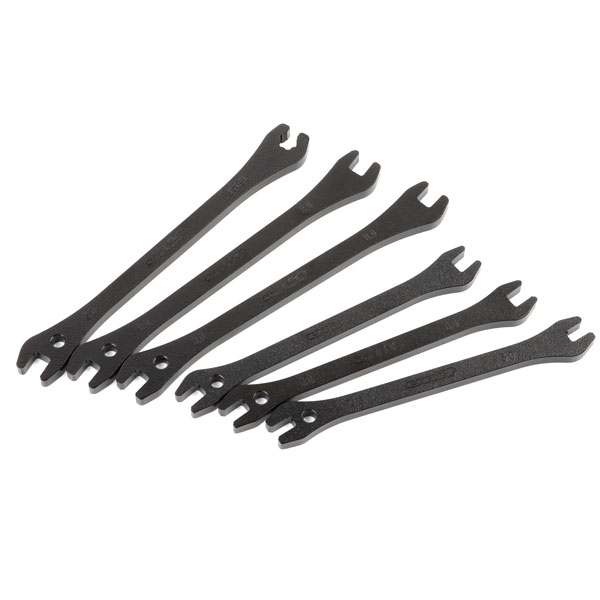

P432x SPOKE WRENCH
SPECIFICATIONS:

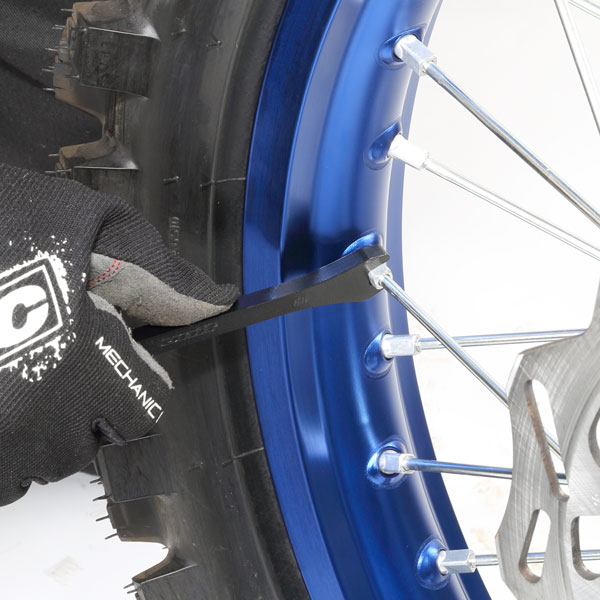

- It works for different nipple sizes with the front and rear wheels as well, designed to an easy-to-use length matched to the nipple.
- It cuts 6 mm thickness steel material with high precision wire cut, and it is hardly strip screw thread even at a high load.
- It fits also to Z WHEEL aluminum nipple and EXCEL spline nipple.
 |

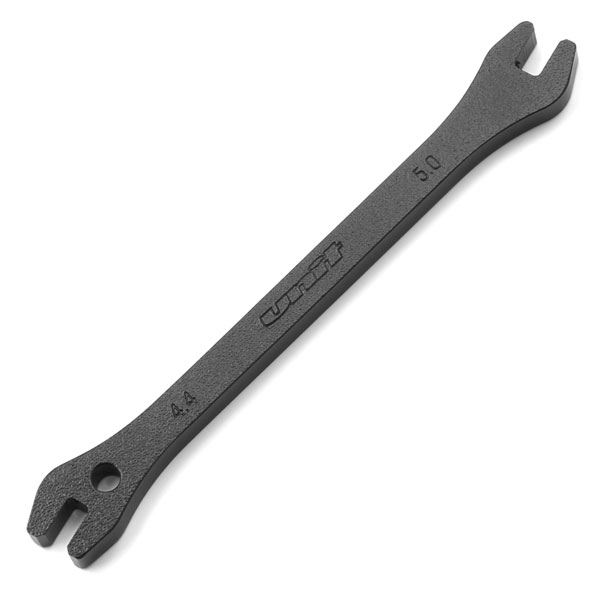

P4321 Spoke Wrench 4.4/5.0 L:130mm |
 |
P4322 Spoke Wrench 5.6/5.8 L:130mm |
 |

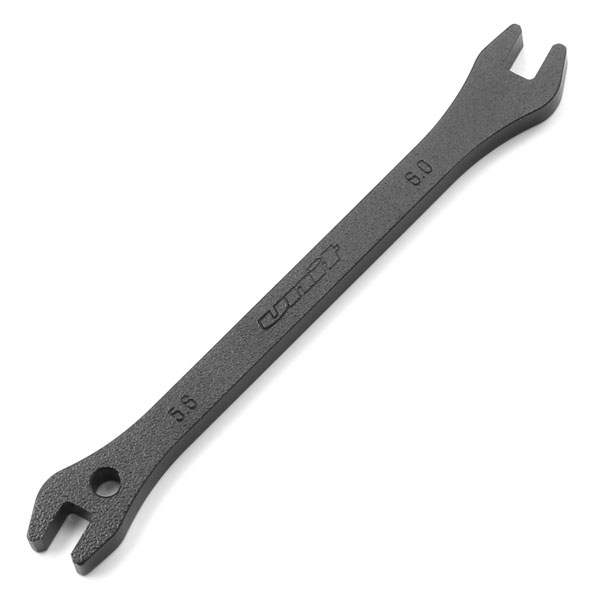

P4323 Spoke Wrench 5.6/6.0 L:130mm |
 |

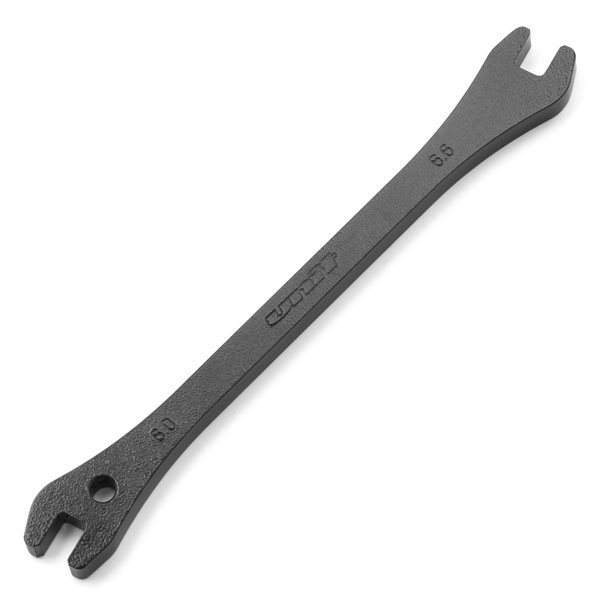

P4325 Spoke Wrench 6.0/6.6 L:150mm |
 |

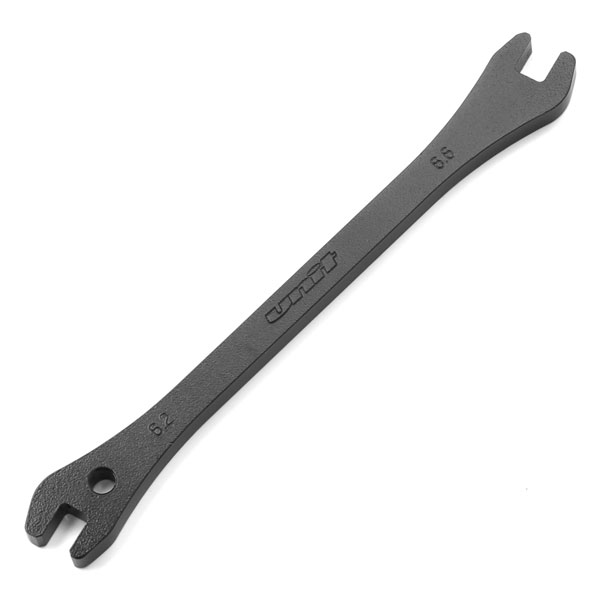

P4326 Spoke Wrench 6.2/6.6 L:150mm |
 |

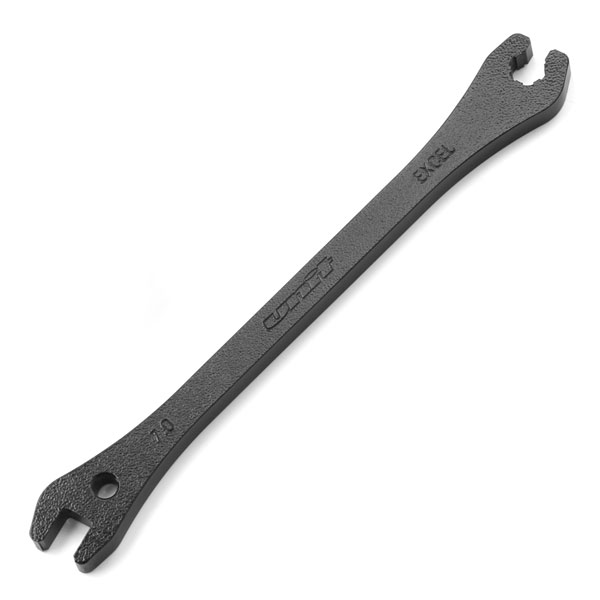

P4328 Spoke Wrench 7.0/EXCEL L:150mm |
| Bike | Year | Part number |
| HONDA | ||
| CR85R/R2 | 03-07 | UN-P4322 |
| CR125R | 02-07 | UN-P4325 |
| CR250R | 02-07 | UN-P4325 |
| CRF150R/R2 | 07-22 | UN-P4322 |
| CRF250R | 04-23 | UN-P4325 |
| CRF450R | 02-23 | UN-P4325 |
| CRF250RX | 19-23 | UN-P4325 |
| CRF450RX | 17-22 | UN-P4325 |
| CRF450L | 19-20 | UN-P4325 |
| CRF450RL | 21-22 | UN-P4325 |
| CRF250X | 04-17 | UN-P4325 |
| CRF450X | 05-22 | UN-P4325 |
| CRF125F | 14-23 | UN-P4321 |
| CRF250L | 12-21 | UN-P4322 |
| CRF250L(S) | 21 | UN-P4322 |
| CRF250M | 12-19 | UN-P4322 |
| CRF250RALLY | 17-21 | UN-P4322 |
| CRF250RALLY(S) | 21 | UN-P4322 |
| CRF300L | 21-22 | UN-P4322 |
| CRF300L RALLY | 21-22 | UN-P4322 |
| CRF1000L AFRICA TWIN | 16-19 | UN-P4323 |
| CRF1100L AFRICA TWIN | 20-22 | UN-P4323 |
| YAMAHA | ||
| YZ65 | 18-22 | UN-P4321 |
| YZ85/LW | 02-22 | UN-P4322 |
| YZ125 | 99-22 | UN-P4326 |
| YZ250 | 99-22 | UN-P4326 |
| YZ250F | 01-22 | UN-P4326 |
| YZ450F | 03-22 | UN-P4326 |
| YZ125X | 17-22 | UN-P4326 |
| YZ250X | 16-22 | UN-P4326 |
| YZ250FX | 15-22 | UN-P4326 |
| YZ450FX | 16-22 | UN-P4326 |
| WR250F | 02-22 | UN-P4326 |
| WR450F | 03-22 | UN-P4326 |
| TRICKER | 04-18 | UN-P4322 |
| WR250R | 07-20 | UN-P4323 |
| WR250X | 07-17 | UN-P4323 |
| XT250X | 06-17 | UN-P4322 |
| XTZ125 | 03-17 | UN-P4321 |
| KAWASAKI | ||
| KX85/2 | 01-23 | UN-P4323 |
| KX100 | 98-21 | UN-P4323 |
| KX112 | 23 | UN-P4323 |
| KX125 | 06-08 | UN-P4325 |
| KX250 | 05-08 | UN-P4325 |
| KX250F | 04-18 | UN-P4325 |
| KX250 | 19-23 | UN-P4325 |
| KX250X | 21-22 | UN-P4325 |
| KX450F | 06-18 | UN-P4325 |
| KX450 | 19-23 | UN-P4325 |
| KX450X | 21-23 | UN-P4325 |
| KLX450R | 08-20 | UN-P4325 |
| KLX125 | 10-16 | UN-P4323 |
| KLX230 | 20-22 | UN-P4323 |
| KLX230 S | 22 | UN-P4323 |
| KLX230R | 20-23 | UN-P4323 |
| KLX230R S | 23 | UN-P4323 |
| KLX250 | 98-20 | UN-P4323 |
| D-TRACKER125 | 10-16 | UN-P4323 |
| D-TRACKER/X | 98-16 | UN-P4323 |
| SUZUKI | ||
| RM85/L | 04-21 | UN-P4322 |
| RMZ250 | 04-06 | UN-P4325 |
| 07-22 | UN-P4326 | |
| RMZ450 | 05-22 | UN-P4326 |
| RMX450Z | 10-19 | UN-P4326 |
| DRZ400S | 00-08 | UN-P4326 |
| DRZ400SM | 05-08 | UN-P4326 |
| KTM | ||
| SX/SX-F/EXC/EXC-F/XC/XC-F/XC-W 85-530 | 09-23 | UN-P4328 |
| FREERIDE250F | 18-20 | UN-P4328 |
| FREERIDE250R | 14-17 | UN-P4328 |
| FREERIDE350 | 12-17 | UN-P4328 |
| FREERIDE E-XC | 15-22 | UN-P4328 |
| 690ENDURO | 09-22 | UN-P4328 |
| HUSQVARNA | ||
| TC/FC/TX/FX 85-450 | 14-23 | UN-P4328 |
| TE/FE 250-501 | 14-23 | UN-P4328 |
| GASGAS | ||
| MC125 | 21-23 | UN-P4328 |
| MC250 | 22-23 | UN-P4328 |
| MC250F | 21-23 | UN-P4328 |
| MC350F | 22-23 | UN-P4328 |
| MC450F | 21-23 | UN-P4328 |
| EX250 | 22-23 | UN-P4328 |
| EX300 | 21-23 | UN-P4328 |
| EX250F | 21-23 | UN-P4328 |
| EX350F | 21-23 | UN-P4328 |
| EX450F | 21-23 | UN-P4328 |
| EC250 | 21-23 | UN-P4328 |
| EC300 | 21-23 | UN-P4328 |
| EC250F | 21-23 | UN-P4328 |
| EC350F | 21-23 | UN-P4328 |
| OTHER | ||
| Z-WHEEL AR1 WHEEL SET | - | UN-P4326 |
| EXCEL SPLINE NIPPLE | - | UN-P4328 |
